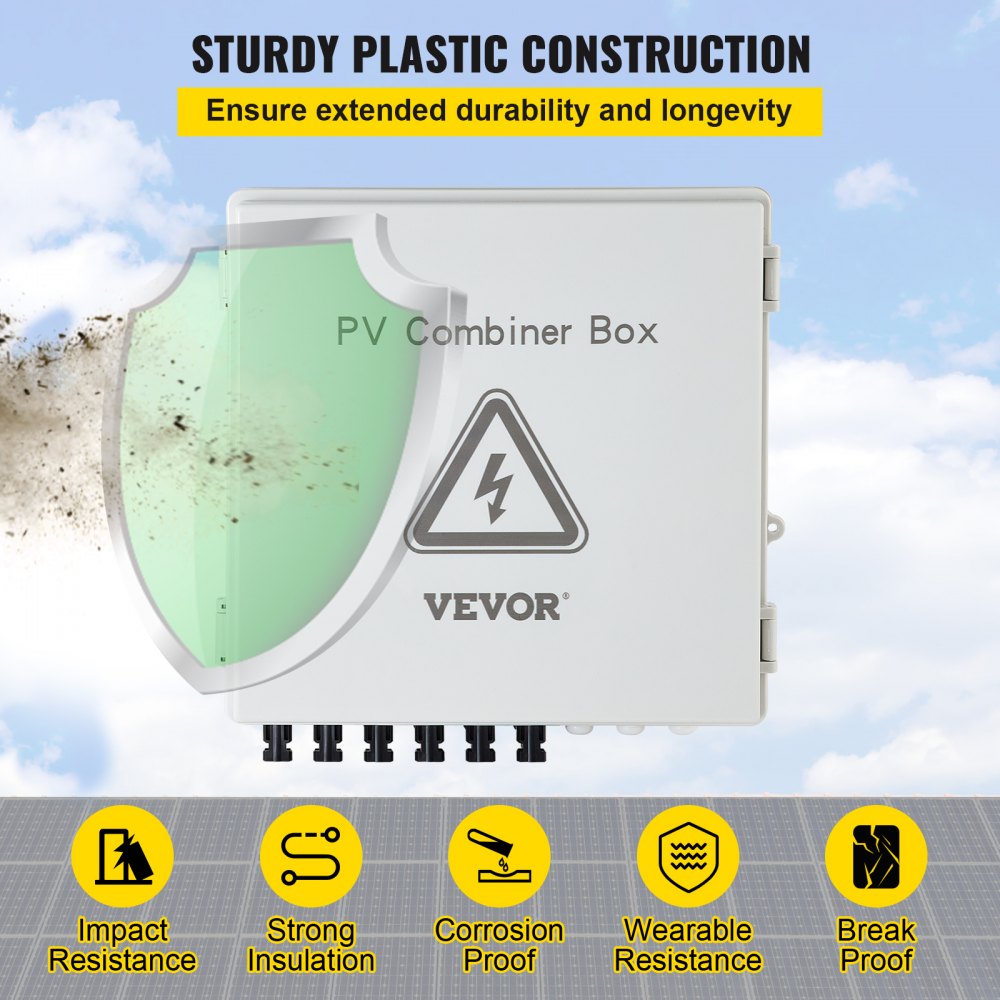

• Durability Meets Reliability: Engineered from ABS insulation material and tested to CE standard, our PV combiner box ensures impeccable insulation, moisture resistance, and drip-free performance. Plus, It is built to resist impacts and breakage, ensuring your equipment remains secure in even the most challenging environments. Elevate your solar setup with our solar combiner box!

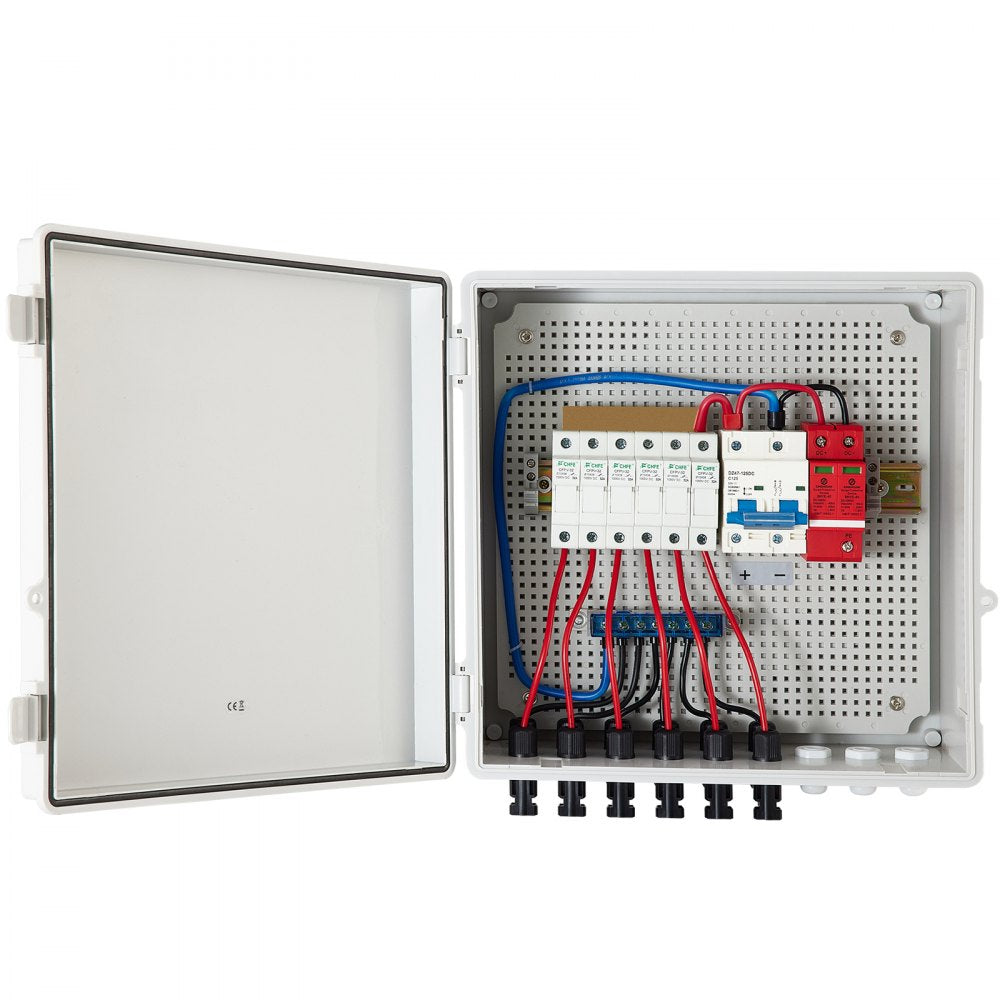

• Professional PV Combiner Box: Featuring 6 15A DC fuses and a 125A circuit breaker, our 6 string PV combiner box makes maintenance a breeze, and you can easily cut off circuits. Say goodbye to the large scope of power outages in case of PV system failures. Get ready to optimize your PV system's performance and boost output power to new heights.
• IP65 Dust & Water Barrier: Our solar PV combiner box boasts an IP65 rating, ensuring waterproof and dustproof protection for long-lasting durability. No frequent replacements are required—our combiner box is built to withstand the elements. Equipped with sealing strips, it ensures a dry interior, seamlessly deflecting rain and dust. Enjoy peace of mind with outdoor use!
• 24/7 Lightning Protection: Our solar PV combiner box is the perfect outdoor companion. With built-in lightning protection, it effortlessly shields against lightning strikes, ensuring peace of mind in any outdoor environment. Bring on the harshest weather—our combiner box is ready to weather the storm.

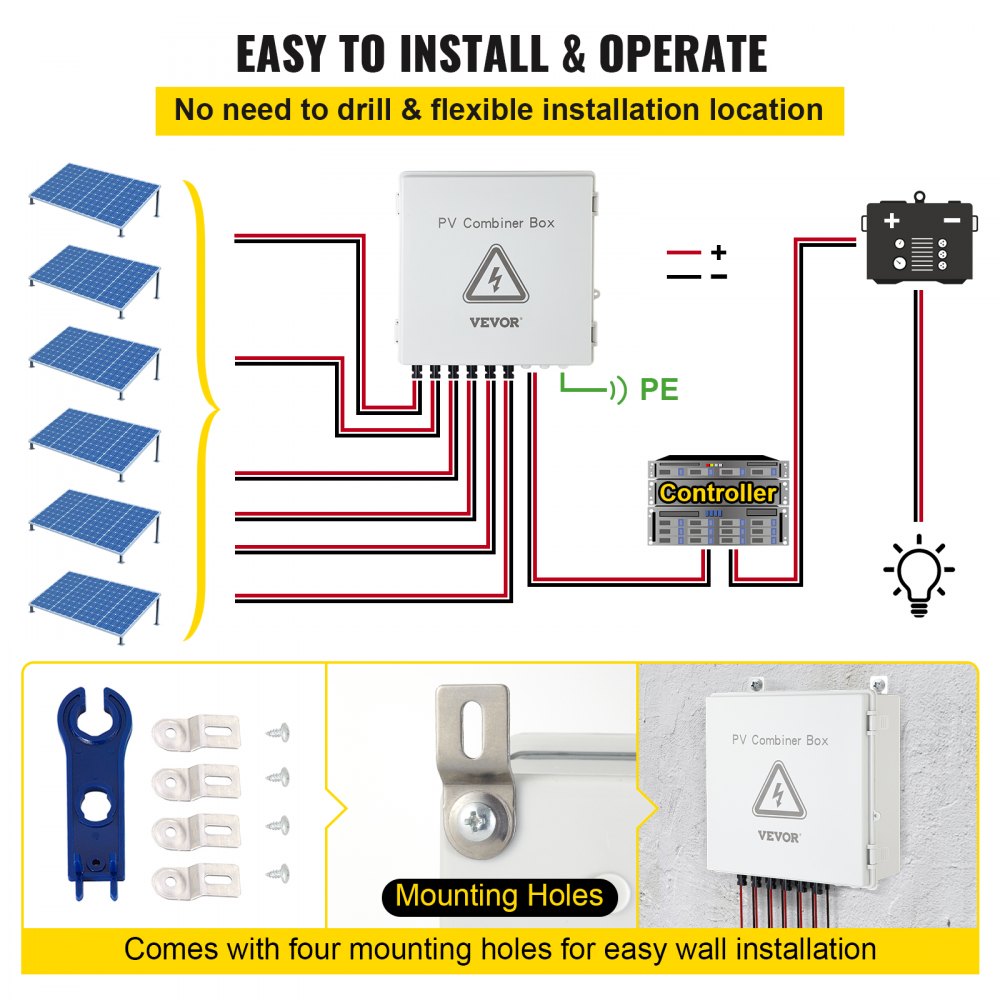

• Installation Made Easy: Set up your solar system in no time with our user-friendly PV combiner box, which is perfect for both grid-tied and off-grid solar power systems and is compatible with various solar panels that use standard solar connectors. Experience hassle-free installation and enjoy a secure connection that stands the test of time!

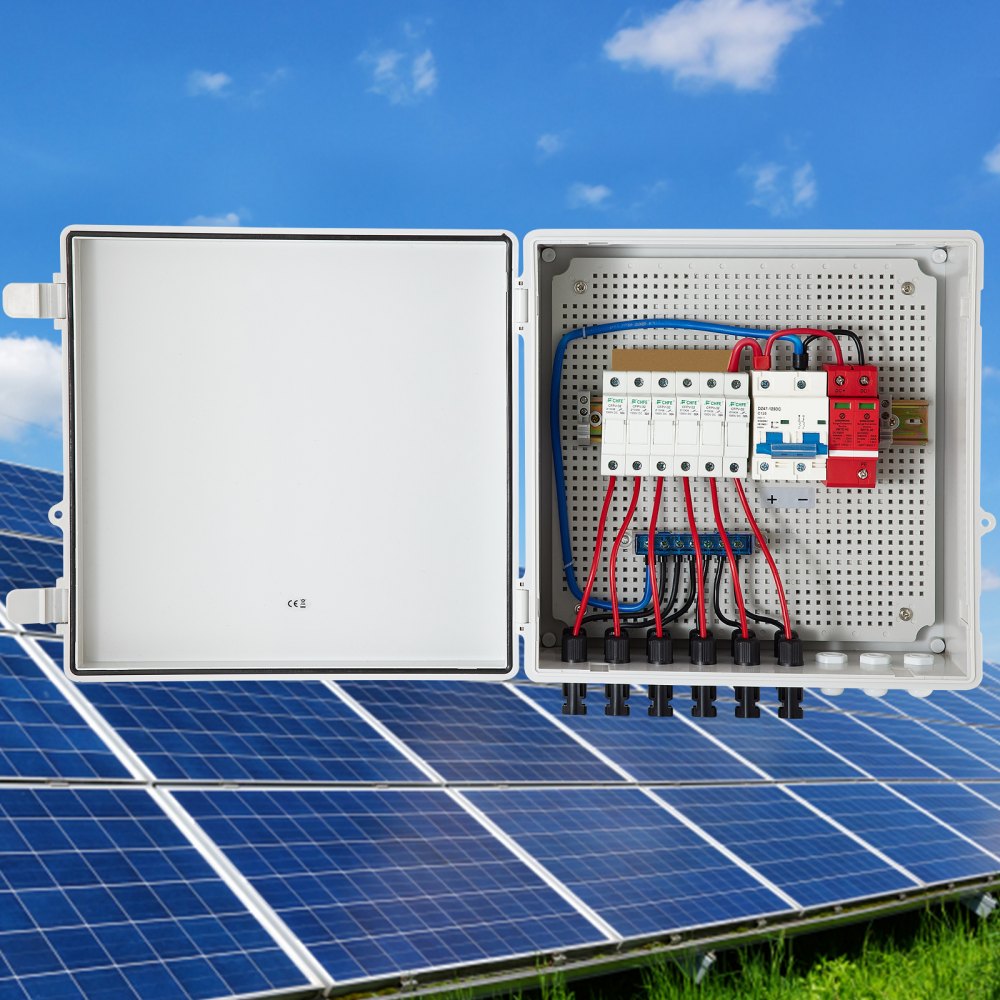

VEVOR PV Combiner Box, 6 String, Solar Combiner Box with 15A Rated Current Fuse, 125A Circuit Breaker, Lightning Arreste and Solar Connector, for On / Off Grid Solar Panel System, IP65 Waterproof
Professional PV Combiner Box
Easy Opening & Closing

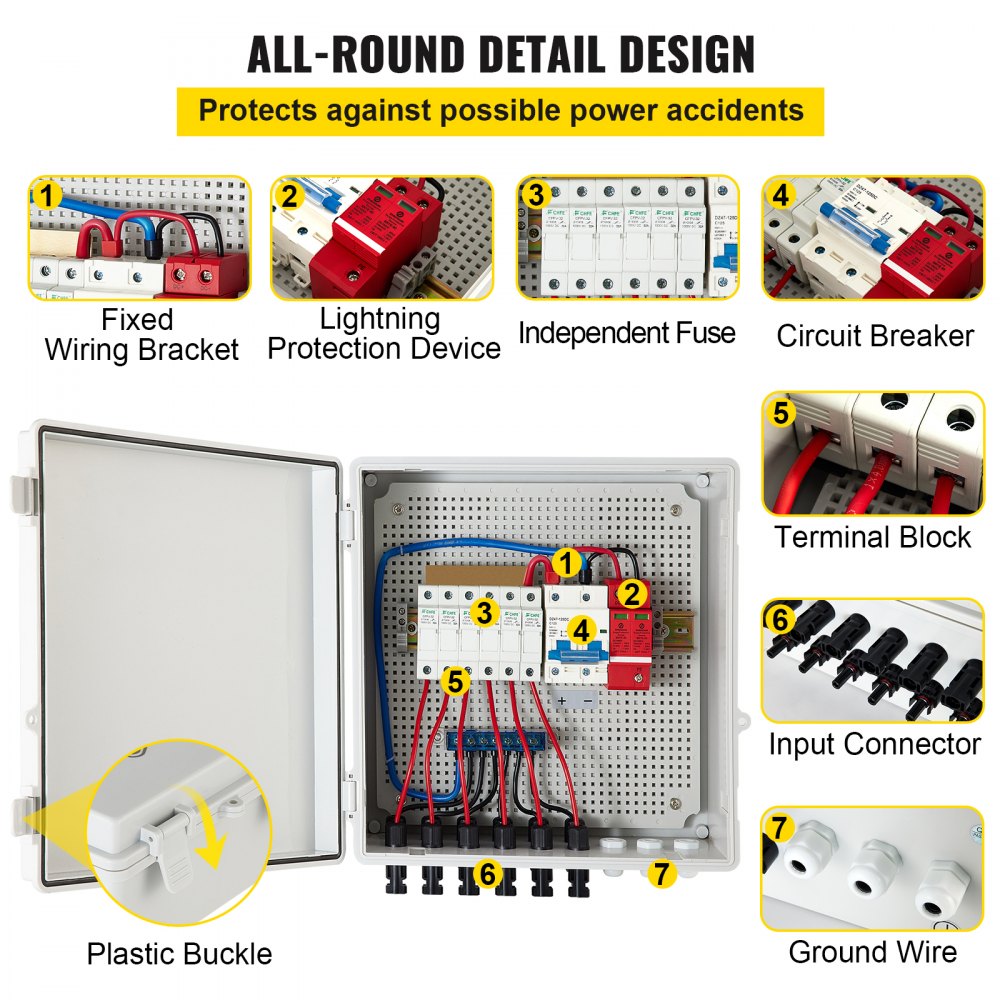

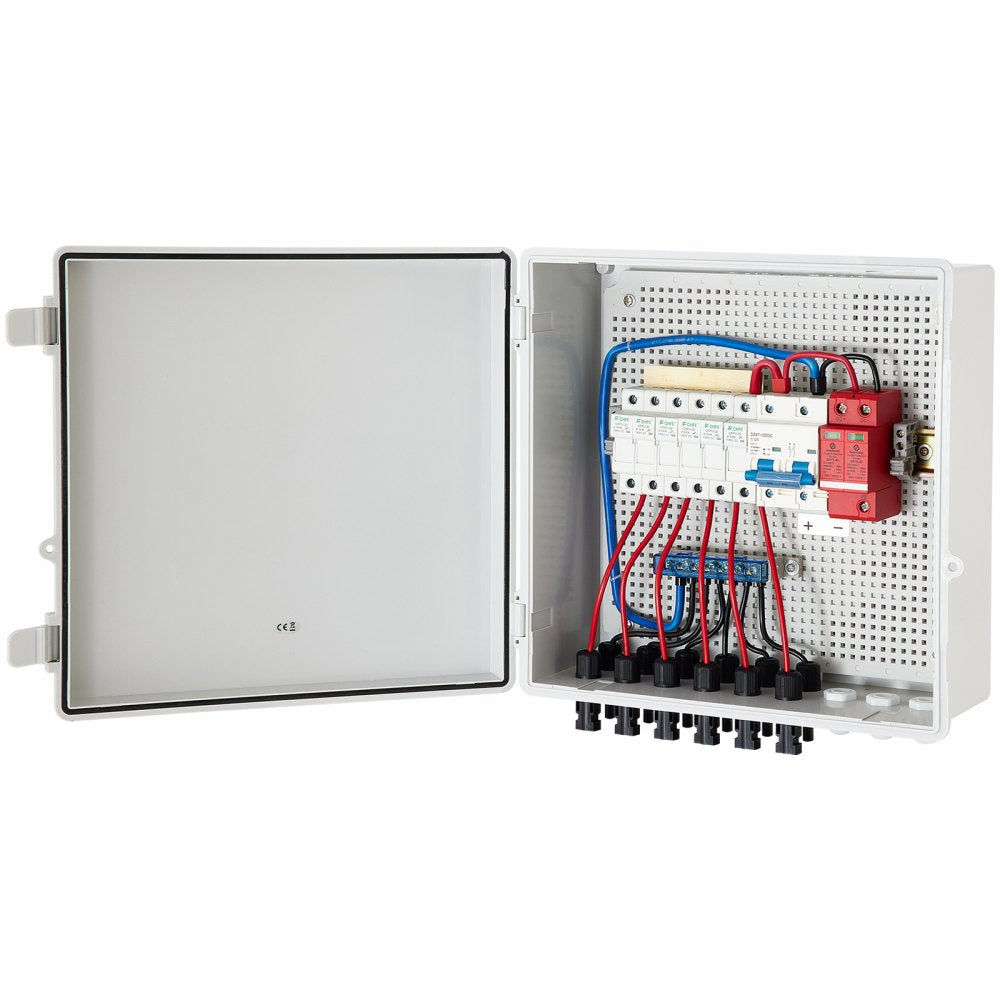

Multiple Layers of Protection

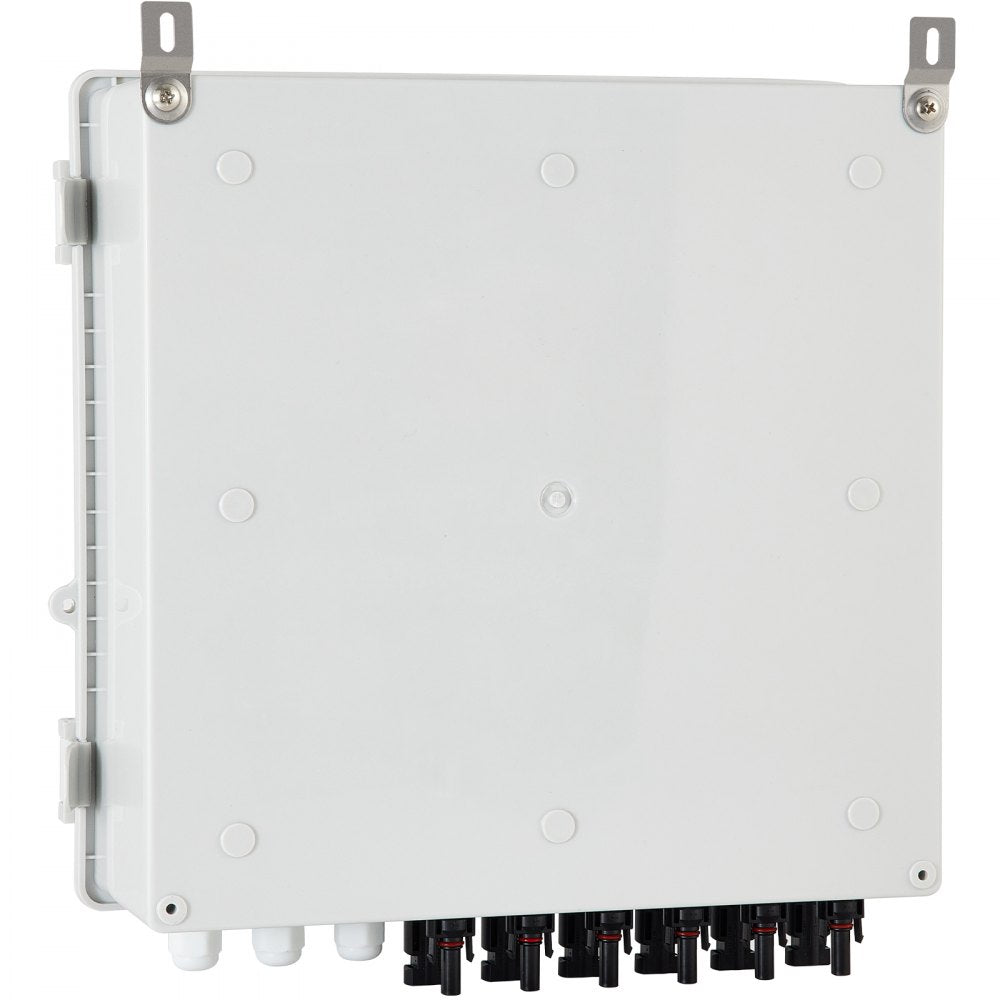

Effortless Installation

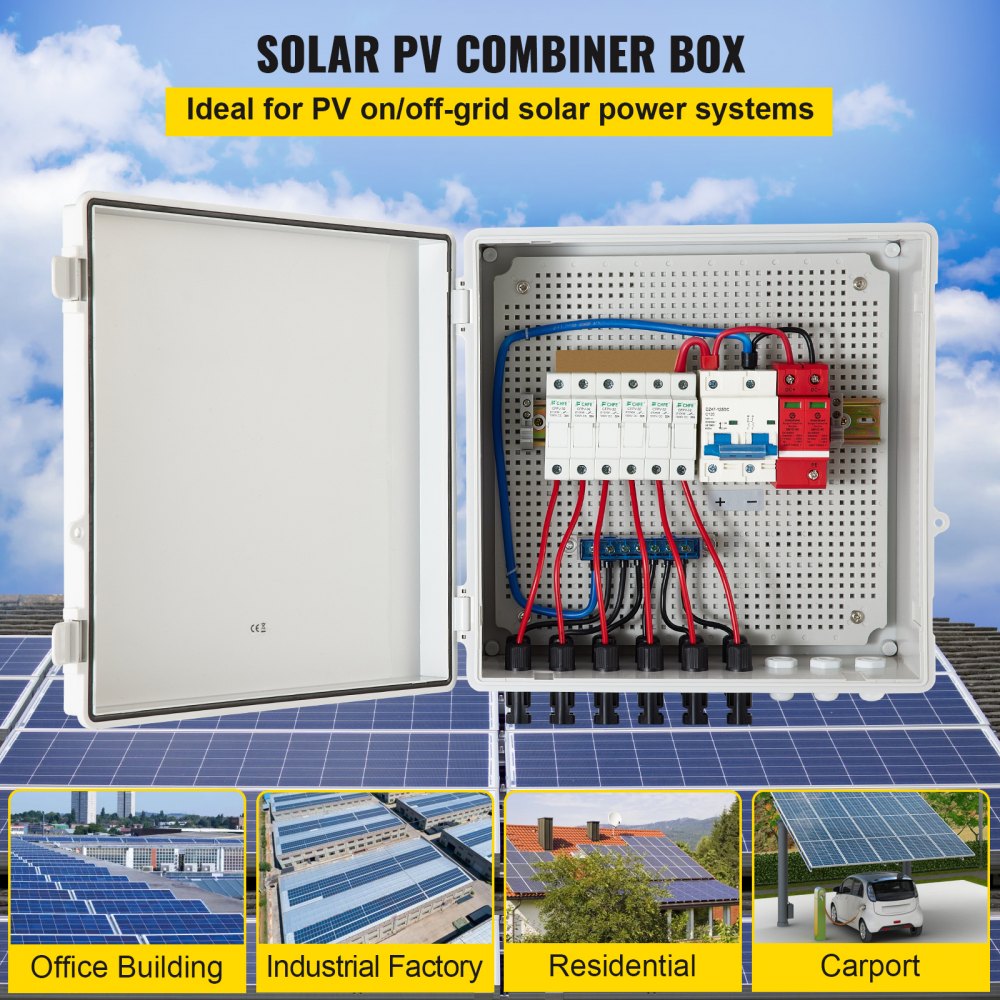

Wide Application
Dual-Color Wire

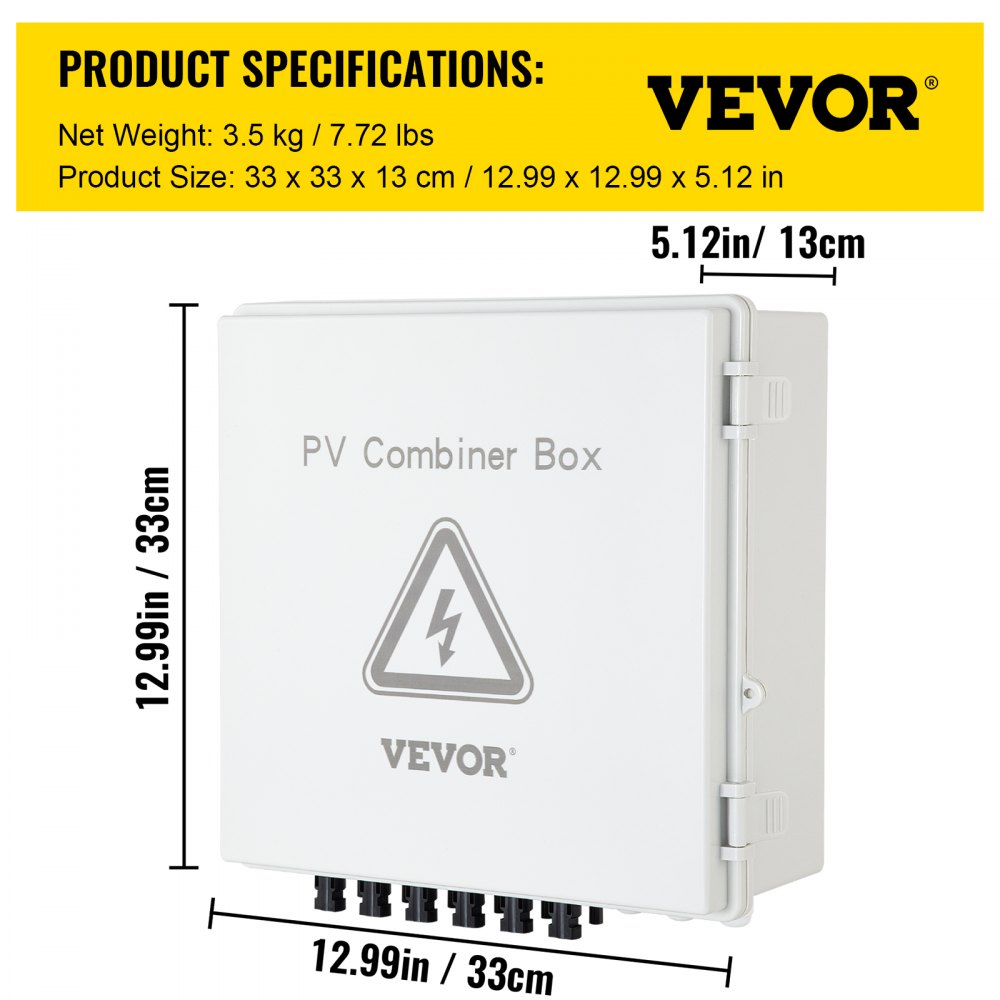

Relative Humidity: 0-95%, No Condensation,Cooling Method: Natural Cooling,Fuse Parameter: DC1000V, 15A, 10 x 38 mm / 0.39 x 1.5 in,Fuse Holder Parameter: DC1000V, 32A,Max. Input Current of Single PV Array: 15A,Max Input Voltage of Single PV Array: 500V,Air Circuit Breaker Parameter: 500V, 125A; ON/OFF,Operational Environment Temperature: -30℃ to 70℃ / -22℉ to 158℉,Protection Grade: IP65,Product Dimensions(L x W x H): 33 x 33 x 13 cm / 12.99 x 12.99 x 5.12 in,Surge Lightning Protection: Yes,RV Solar System: 1080W in 12V System, 2160W in 24V System, 4320W in 48V System,Max Output Voltage: 500V,SPD Indicate Light Status: Green: Normal; Red: Triggered,Surge Protective Device: in: 20kA; Imax: 40kA; Up: 1.8kV,Model: SWHL-6,Total Input Current of PV Array: 90A,Number Of Max. Connection PV Array: 6,Net Weight: 3.5 kg / 7.72 lbs
