• Fundamental Parameters: The hydraulic foot pump has a maximum working pressure of 10,000 PSI. Action: Single Acting, Flow Rate: 0.8 liters / 0.21 gallons per minute, Air Connection: 1/4" NPT, Output Oil Hole: 3/8" NPT, Hydraulic Oil Type: HM22/HM32, Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc), Input Air Pressure: 0.7-1MPa, Fuel Tank Capacity: 1.6L ± 0.1L, Maximum Oil Output: 1.3L, Oil Output Pressure: 70MPa.
• Foot-Actuated Design: The air hydraulic pump adopts a user-friendly foot-actuated design to provide hands-free operation for pumping and releasing the load, saving the operator's time and effort with strong power and high output pressure. The convenient 2-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.
• Sturdy & Compact Construction: This air hydraulic foot pump features an aviation aluminum pump core and a high-quality metal shell to handle tough industrial applications. 1.6L oil tank has a larger capacity with 98 cubic inches / 1.6 liters oil capacity. Built-in internal relief valve protects the hydraulic components regardless of hydraulic pressure.

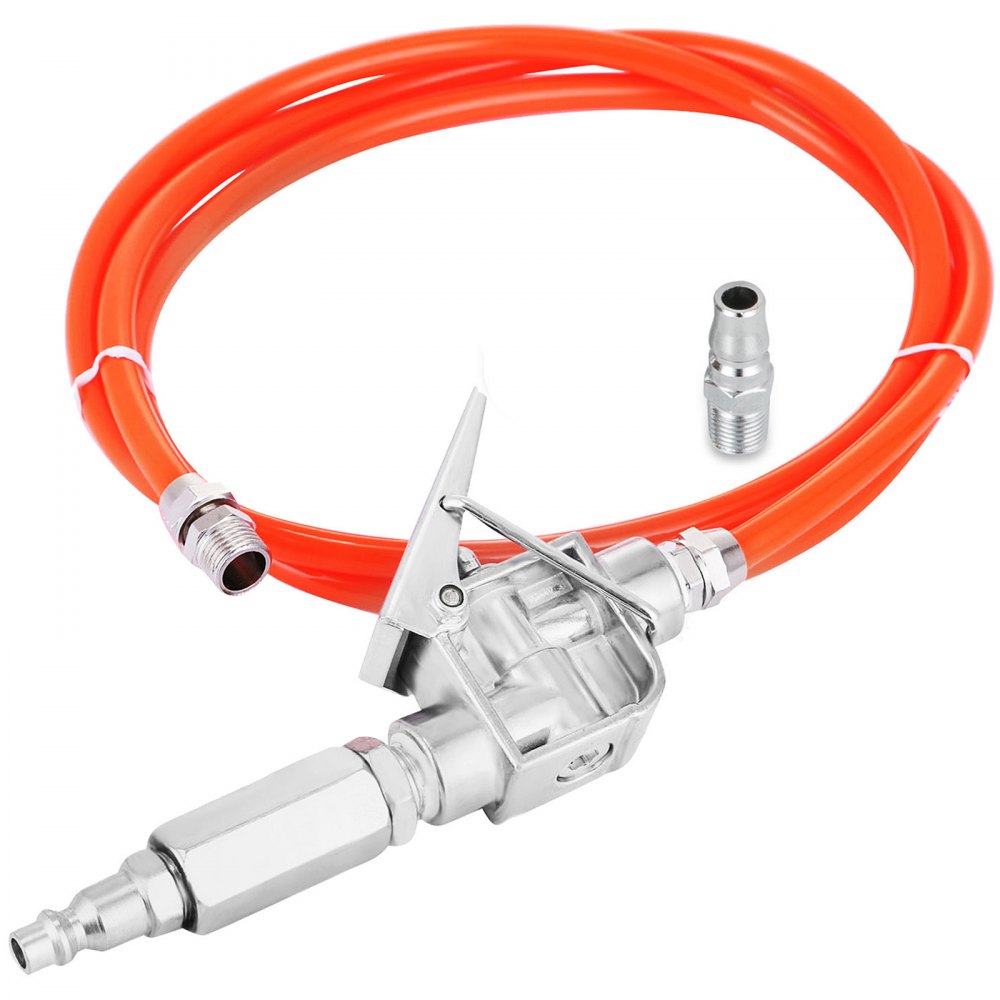

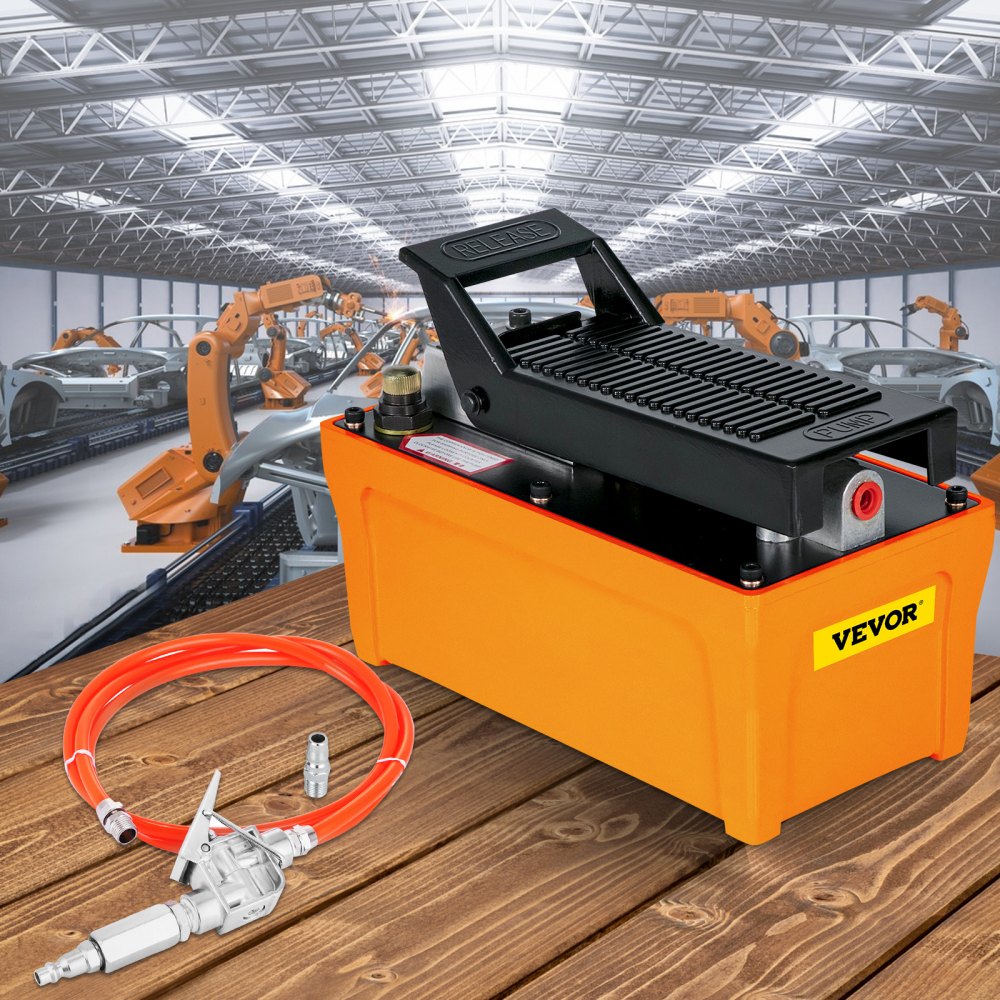

• Oil Pipe & Spray Gun Included: This hydraulic air pump is equipped with a 1.25 m / 4.1 ft high-pressure oil pipe that features double protection of embedded steel wires and thickened outer layer. The oil port is made of cast steel, durable and reliable. A spray gun is included to control the input and interruption of the airflow, which is an effective start-stop device.
• 10,000 PSI for Wide Application: This high-pressure hydraulic air-powered pump is designed to be used with single-acting cylinders only, efficiently operates many industrial and construction single-acting ram applications. An ideal all-around power source and a great unit for use with a wide variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

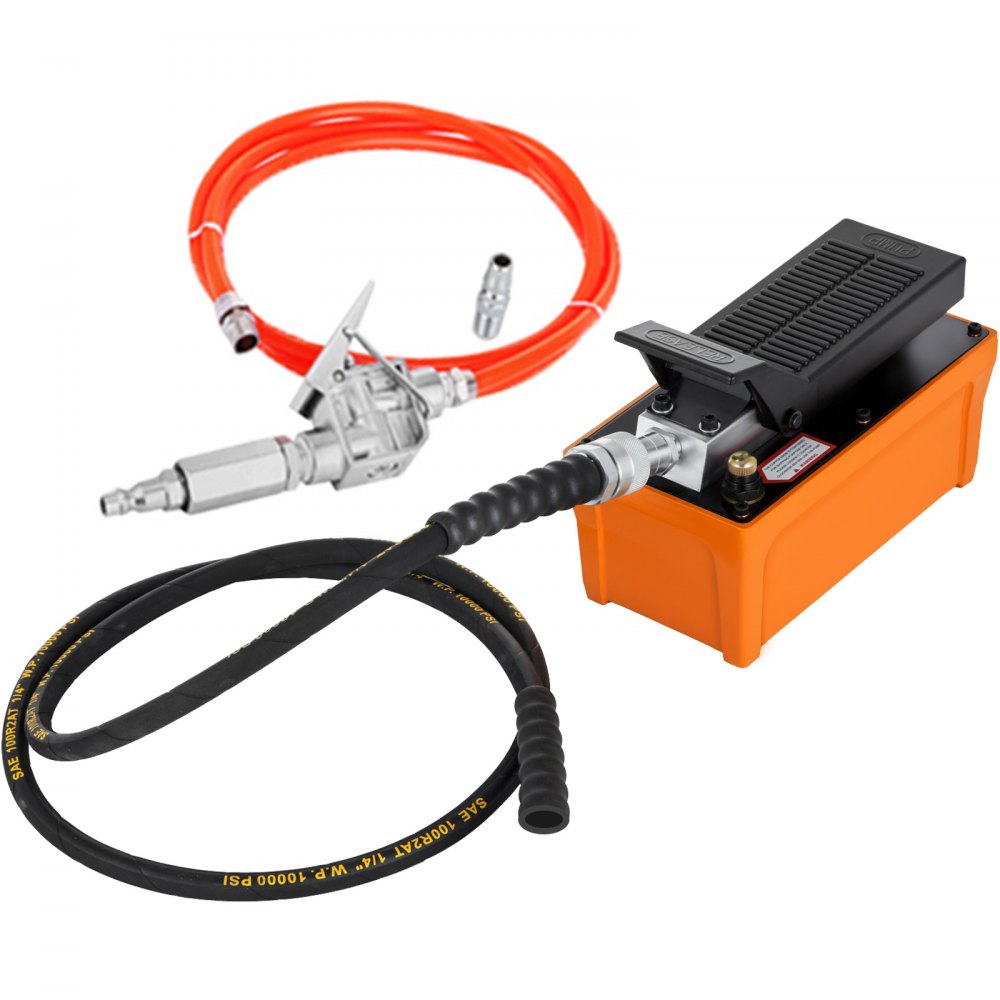

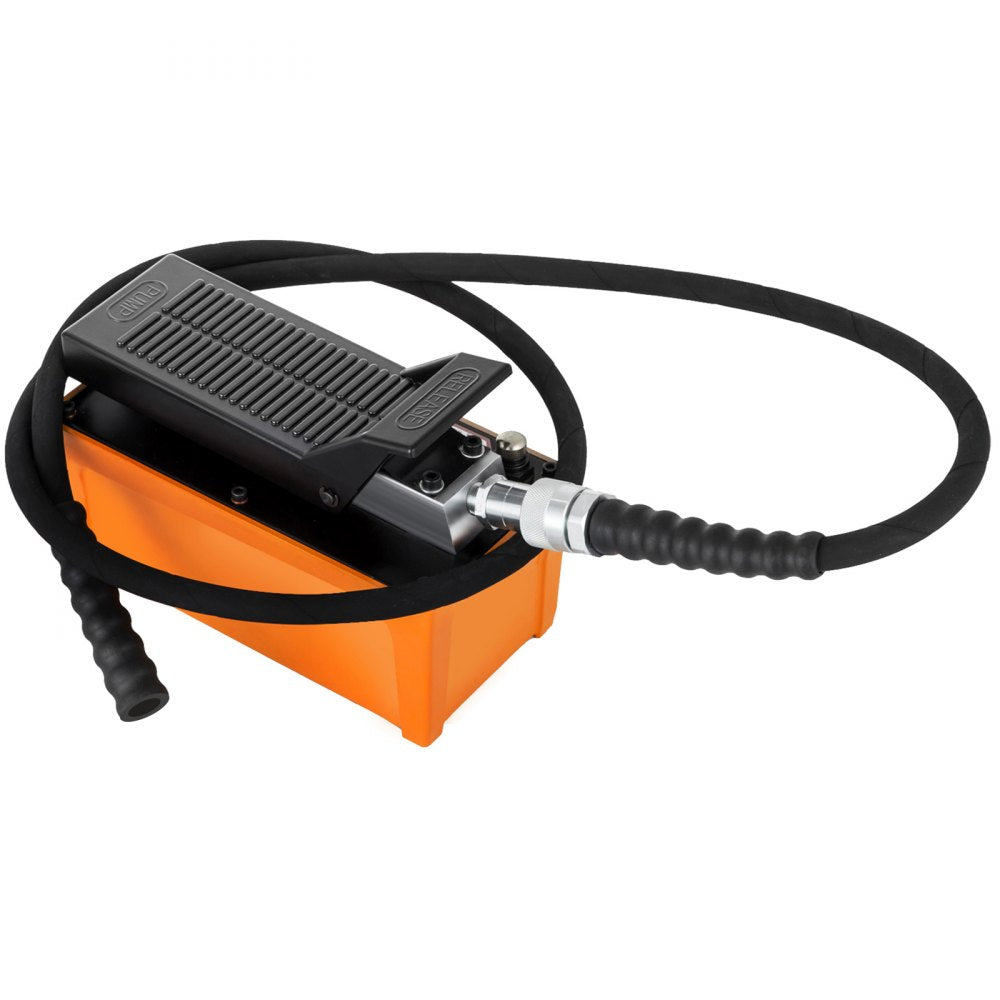

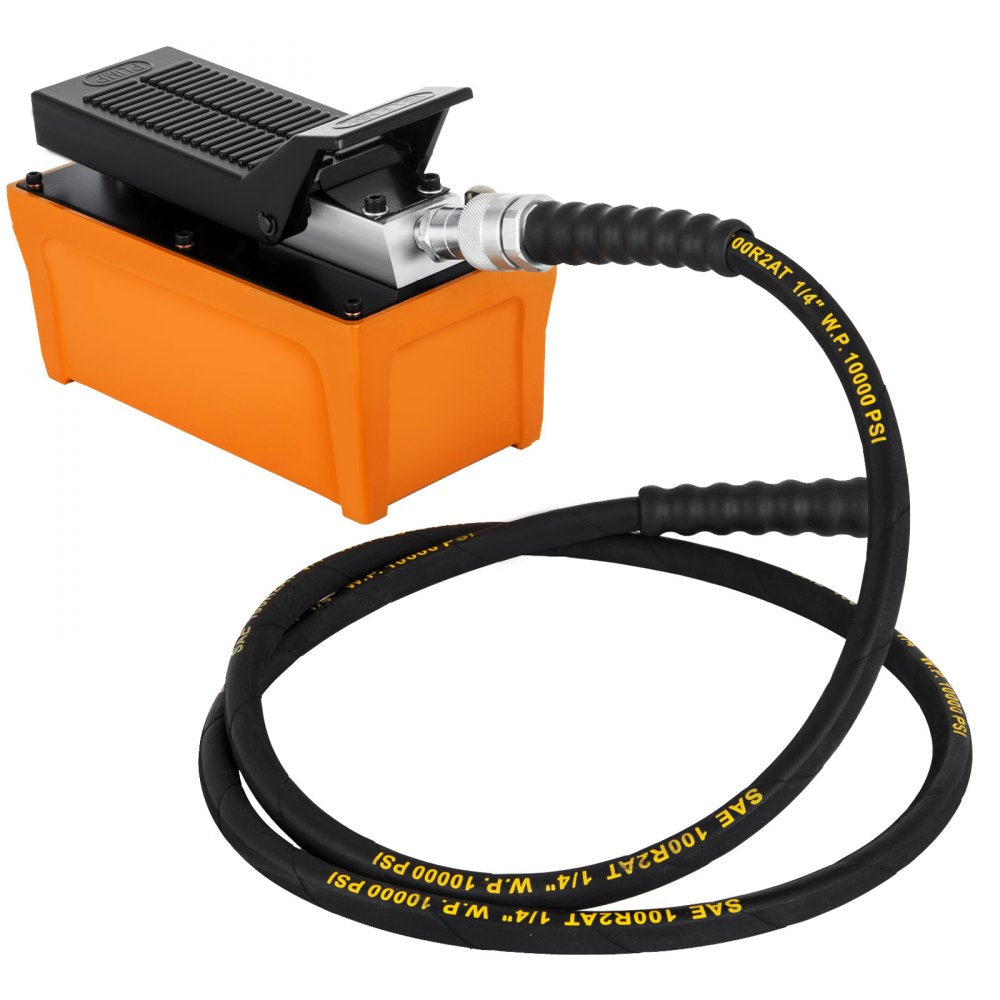

Hydraulic foot pump Hydraulic pump 700bar Air foot pump with hose

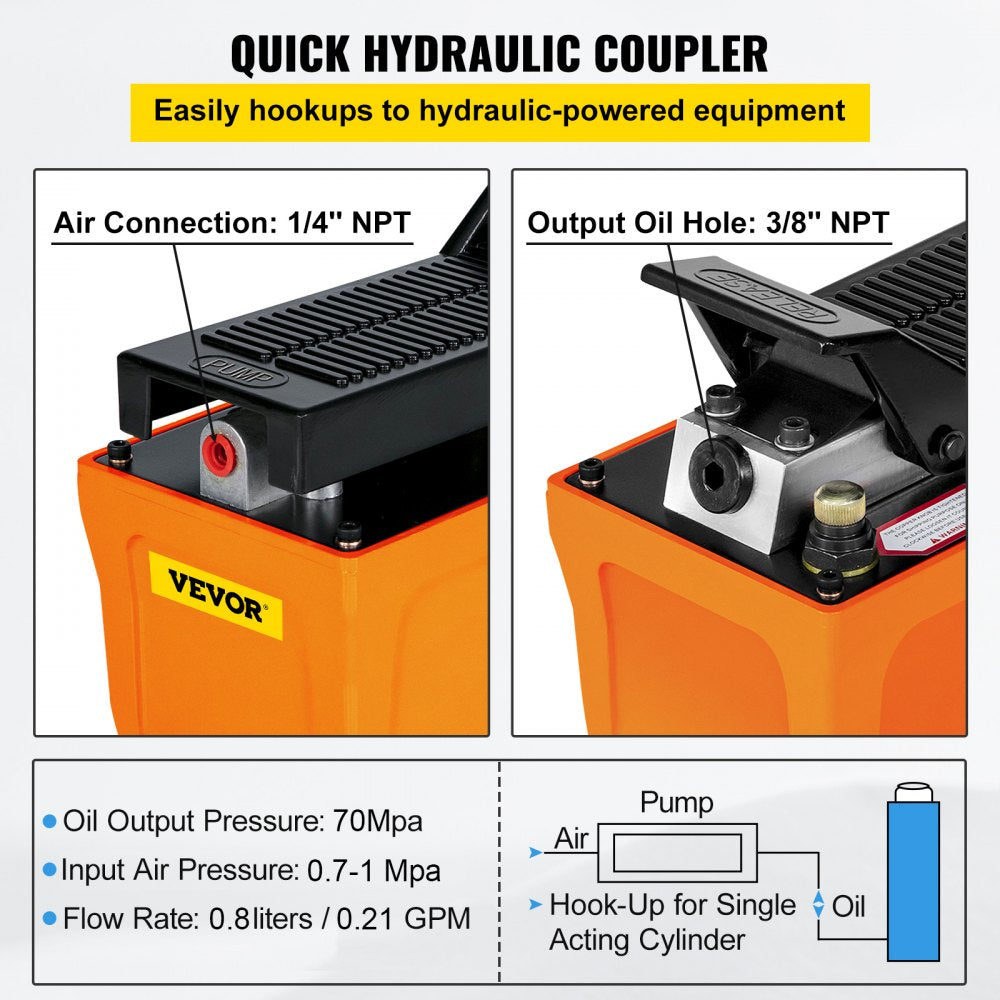

Standard Air Inlet & Oil Outlet

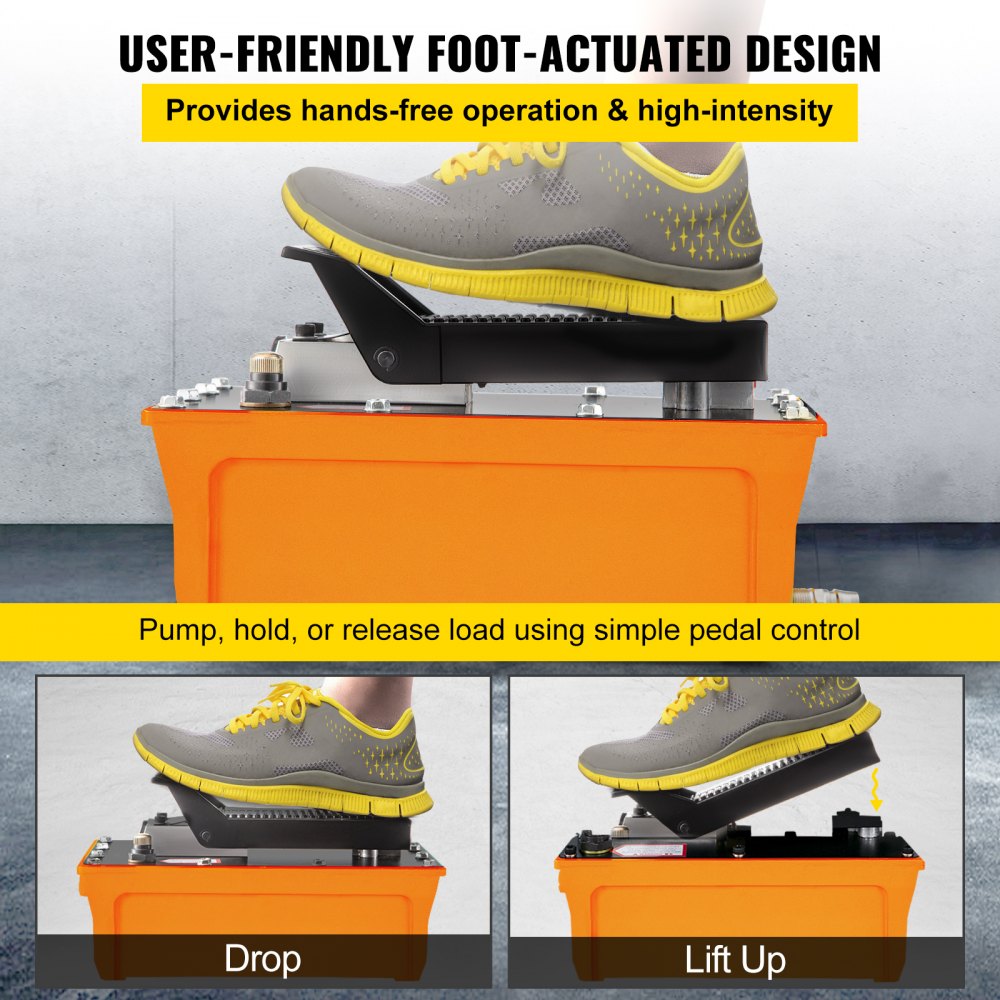

Simple Foot Pedal Control

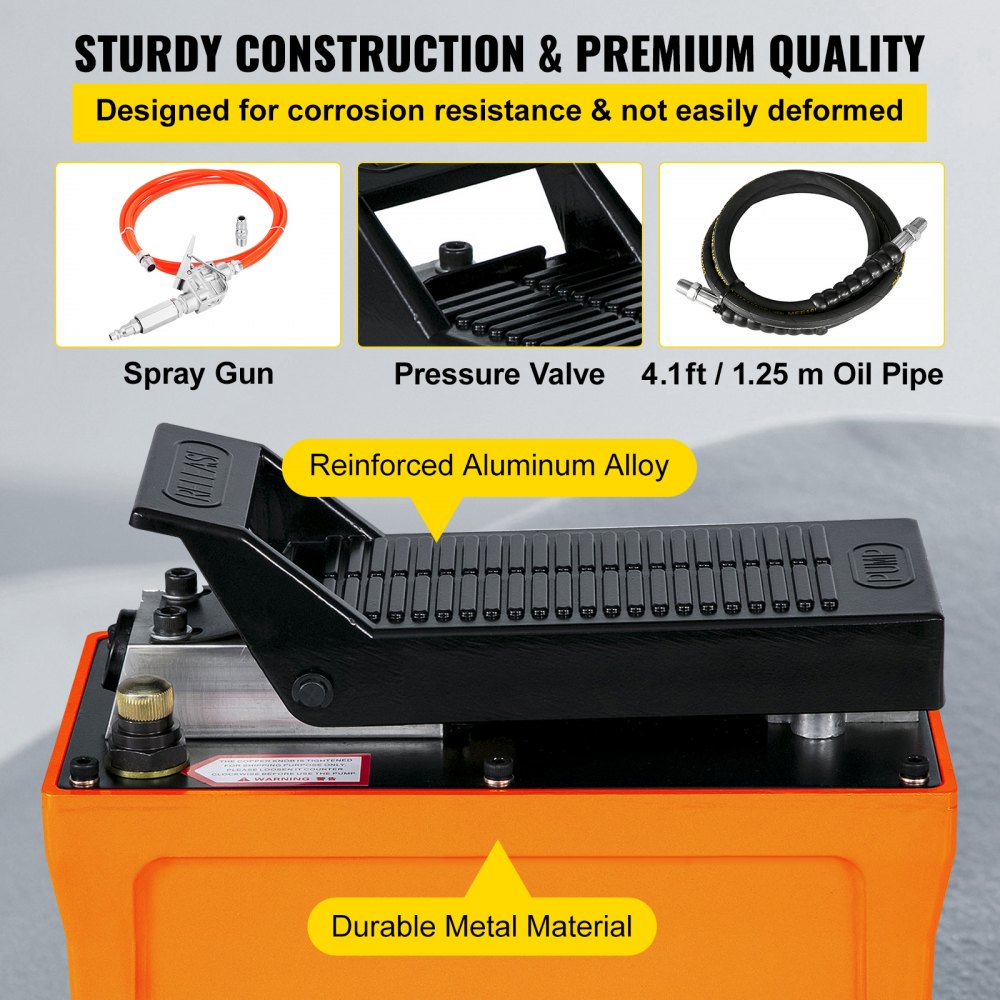

Premium Quality & Structure

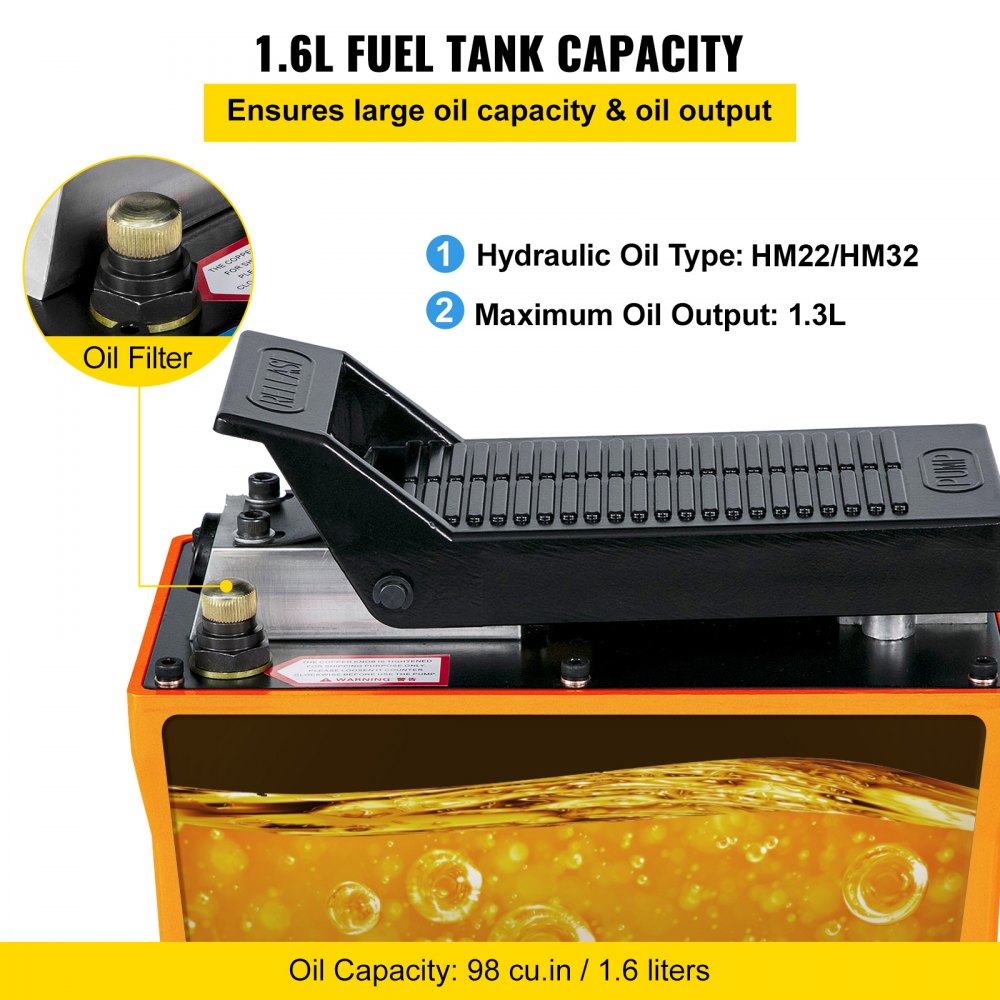

1.6L Large Oil Tank
Excellent Pipeline & Spray Gun

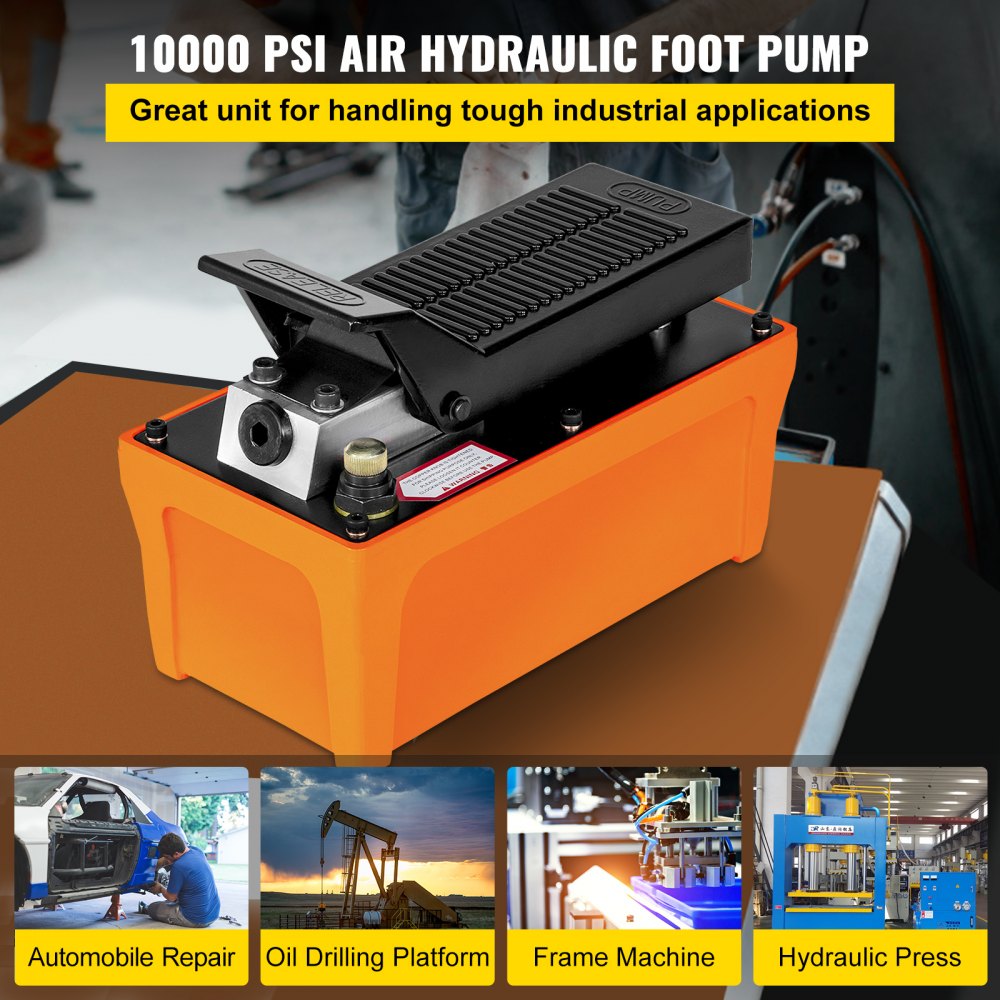

Multiple Application

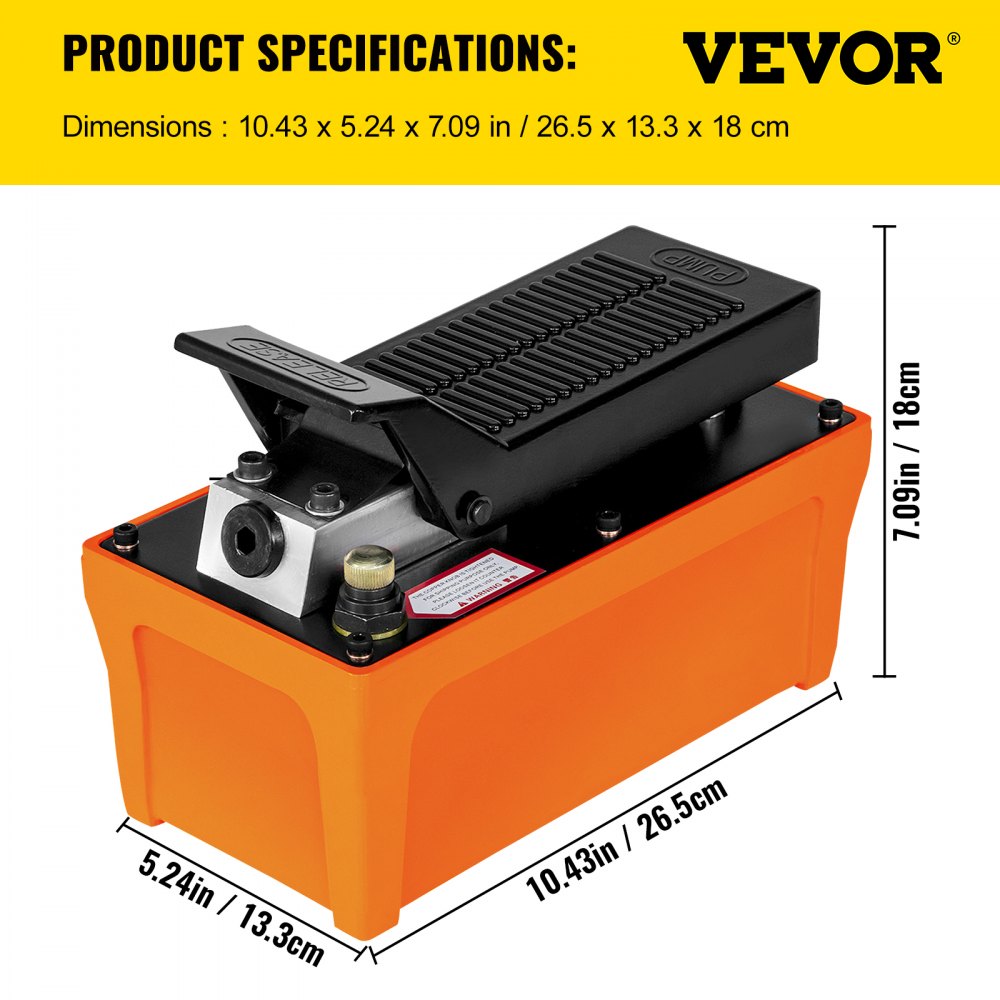

Action: Single Acting,Air Connection: 1/4" Female NPT,Pressure Range: ≥0.5,Max Output Hydraulic Pressure: 10000 psi, 700 kg/square cm,Overall Dimensions (L x W x H): 265 x 133 x 180 mm / 10.43 x 5.24 x 7.09'',Capacity Tolerance: ± 0.1L,Oil Output Pressure: 70MPa,Total Mass: 8.0 kg / 17.64 lbs,Output Oil Hole: 3/8'' NPT Connection,Oil Capacity: 98 Cubic Inches / 1.6 Liters (1600 cc),Maximum Oil Output: 1.3L,Flow Rate: 0.8 liters / 0.21 gallons per minute,Type: Air Powered Hydraulic Pump,Control: Foot pedal pump - Release pressure to return fluid,Input Air Pressure: 0.7-1MPa,Hydraulic Oil Type: HM22/HM32,Model: B-70BQ,Includes Hydraulic Hose: 1.25 m / 4.1 ft with 3/8'' NPT - Quick hydraulic coupler,Fuel Tank Capacity: 1.6L,Shell Material: Reinforced Aluminum Alloy
